Saratoga

Home Saratoga

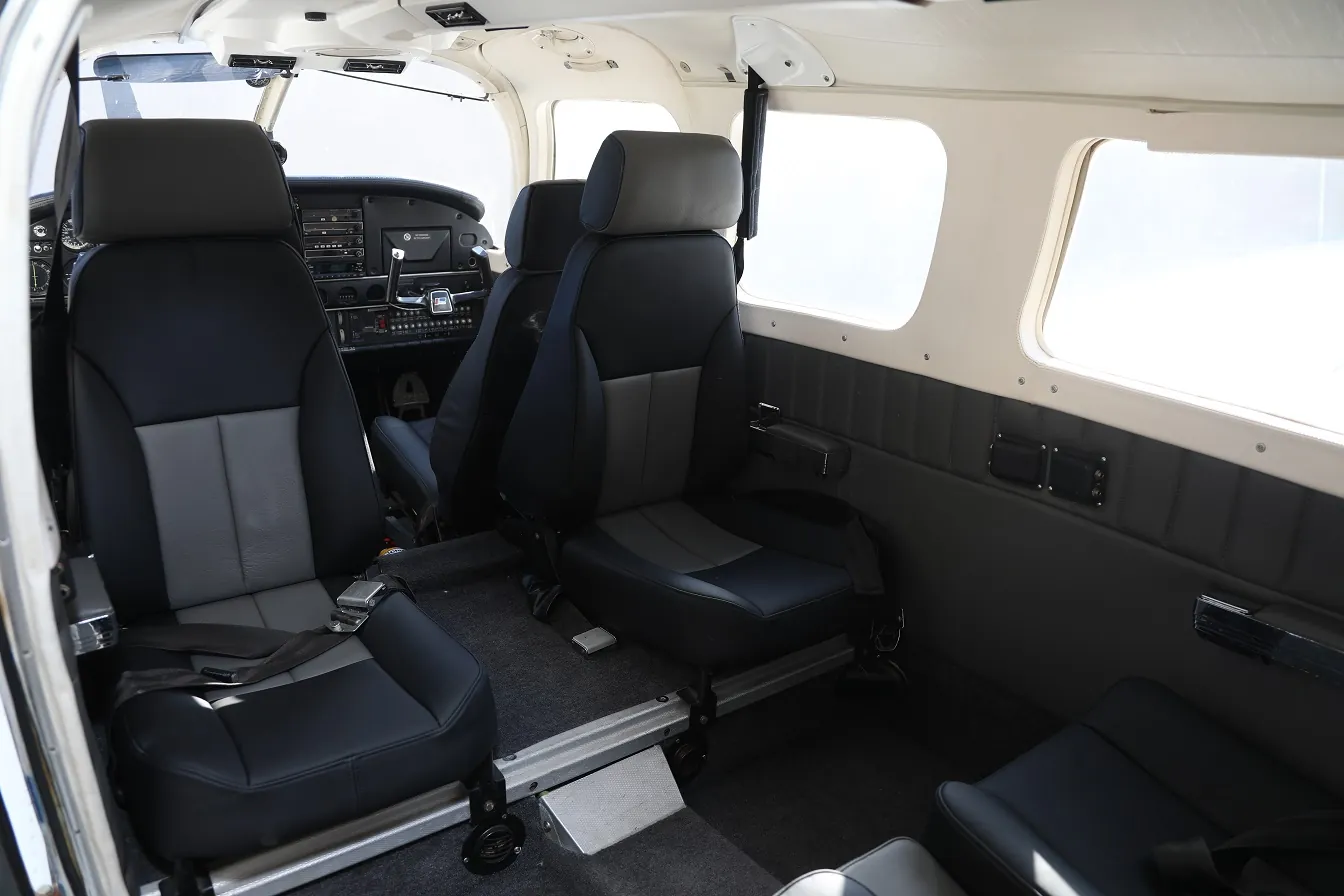

Often described as a limousine with wings the Saratoga has the wings of a Warrior but with bigger tips, the long fuselage of a Lance and the flaps of an old style Cherokee. Retractable undercarriage, a 300HP Lycoming engine and club style seating for 6 make up this great touring aeroplane.

The success of the Saratoga has seen production continue of this model.

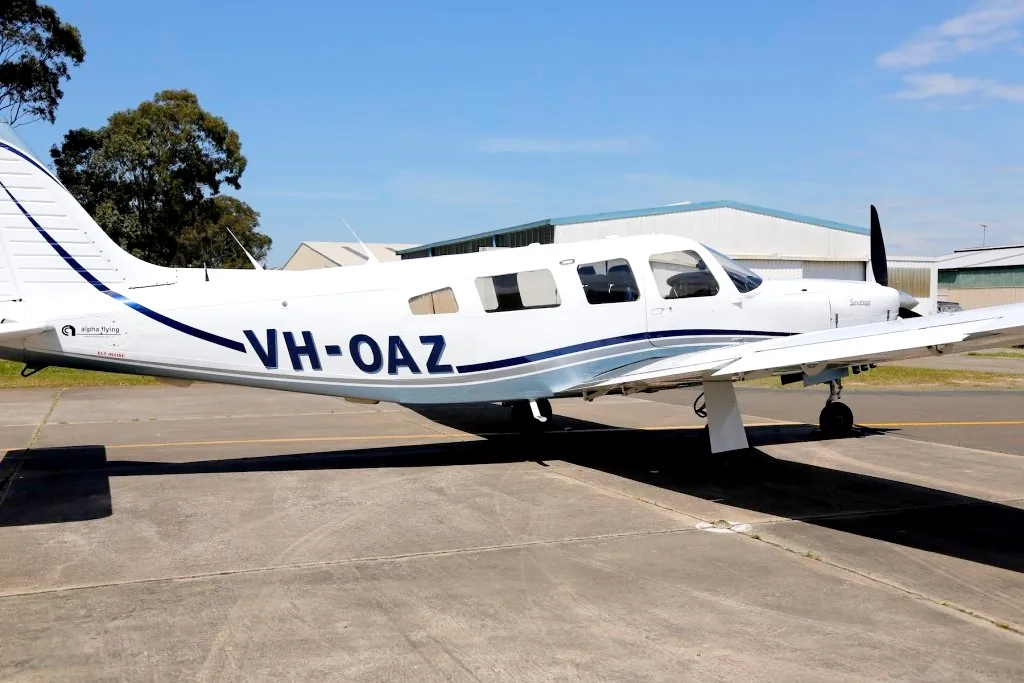

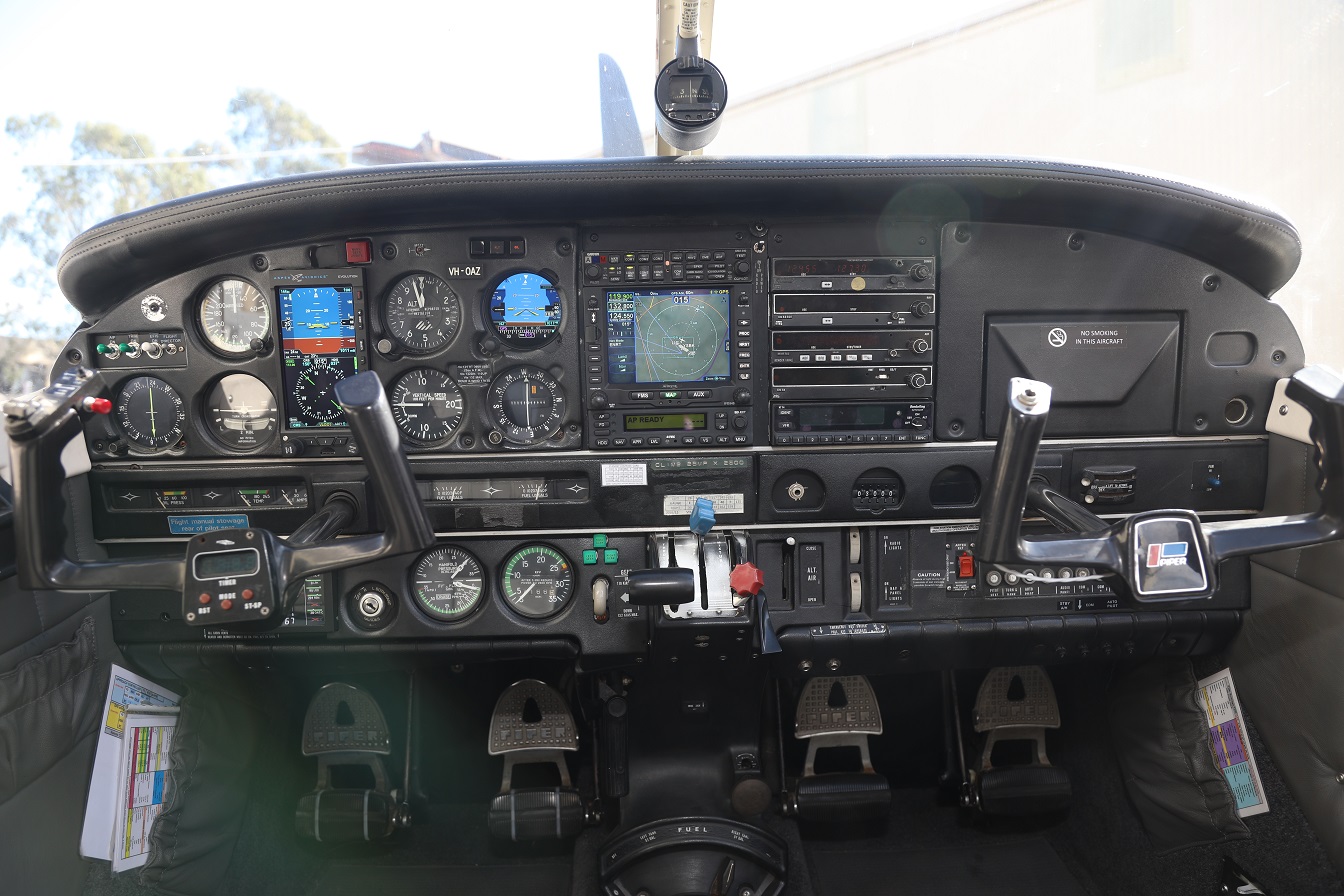

VH-OAZ has recently undergone some major refurbishment work which included a complete re spray, full interior reupholster and an avionics upgrade which included the installation of a Avidyne IFD540 GPS ADSB.

This is a great six seat touring aeroplane which is faster than a Piper Lance.

To fly this aeroplane you will need to have a minimum of 150hrs as "Pilot In Command".

All our AIRCRAFT are HANGARED at BANKSTOWN

Click Here to See Archer
Documentation
OAZ Handling Notes OAZ POH OAZ W&B Calculator OAZ Checklist OAZ Pilot Guide IFD540 OAZ Auto Pilot
Description

Piper Saratoga SP P32R-301
Aircraft Type P32R
6 seat IFR retractable

Power

Lycoming IO-540 K
Constant speed McCauley

Fuel

386 litres 100-130 avgas
60-65 litres per hour

Speeds

132 KIAS VLO Max Gear Extension
132 KIAS VLE Do not exceed with gear extended
110 KIAS Max Gear Retraction Speed
197 KIAS VNE Never Exceed this speed (Yellow Arc)
145 KIAS cruise
112 KIAS VFE Max Flap extension Speed
57 KIAS stall full flaps
17 KTAS max crosswind

Weights

1026 kg empty
1633 kg MTOW
